1 package com.insanityengine.ghia.apps;
2
3 import java.applet.*;
4
5 import java.awt.*;
6 import java.awt.image.*;
7 import java.awt.event.*;
8
9 import javax.swing.*;
10 import javax.swing.event.*;
11
12 import java.util.*;
13
14 import com.insanityengine.ghia.m3.*;
15 import com.insanityengine.ghia.util.*;
16 import com.insanityengine.ghia.pixels.*;
17 import com.insanityengine.ghia.libograf.*;
18
19 /***
20 *
21 * <P>

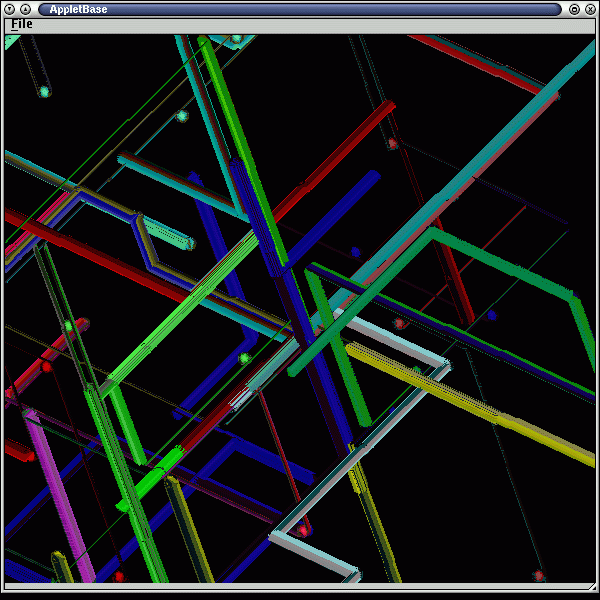

22 * This play pretty is that kinda pipe screen saver thing you like.
23 * It needs to be used with a renderer which implements a real pixel
24 * buffer type interface...
25 * </P>
26 *
27 * <IMG SRC="http://ghia.sourceforge.net/images/old_snaps/Piping.gif"/>
28 *
29 * @author BrianHammond
30 *
31 */
32
33 public class Piping extends AppletBase {
34
35
36
37 public final static void main( String argv[] ) {
38 Piping lite = new Piping();
39 lite.frame( 600, 600 );
40 }
41
42
43
44 public Piping() {
45 initCirclePoints();
46 reset();
47 }
48
49
50
51 public void initImpl( int w, int h ) {
52 gl.getRenderer().setShadingMethod( M3_Constants.NORM_SHADE );
53 gl.getRenderer().clear();
54 }
55
56 public final void drawImpl() {
57
58 gl.identity();
59 gl.rotate( rotation );
60 gl.scale( scale );
61
62 pipe.draw( gl );
63
64 if ( paused ) {
65 reset();
66 paused = false;
67 }
68 }
69
70 public final void reset() {
71 if ( null != gl ) gl.getRenderer().clear();
72 scale.set( ( float ) ( 0.01 + 0.05 * Math.random() ) );
73 rotation.set(
74 ( float ) ( Math.PI * 2 * Math.random() )
75 ,
76 ( float ) ( Math.PI * 2 * Math.random() )
77 ,
78 ( float ) ( Math.PI * 2 * Math.random() )
79 );
80 pipe.reset();
81 }
82
83
84
85 Piper pipe = new Piper();
86 private static Pt2 circlePts [] = null;
87 private Pt3 scale = new Pt3();
88 private Pt3 rotation = new Pt3();
89
90
91
92 private void initCirclePoints() {
93 if ( null == circlePts ) {
94
95 circlePts = new Pt2[ 16 ];
96 int i = 0;
97 double rad = 1f;
98 double inc = Math.PI * 2 / circlePts.length;
99
100 for ( double f = 0 ; f < Math.PI * 2 ; f += inc, ++i ) {
101 System.out.println( "" + " f = " + f );
102
103 circlePts[ i ] = new Pt2(
104 rad * Math.cos( f )
105 ,
106 rad * Math.sin( f )
107 );
108 }
109 }
110 }
111
112
113
114 /***
115 *
116 * This class is used to draw the pipes
117 *
118 */
119 private class Piper {
120
121 /***
122 *
123 * Constructor
124 *
125 */
126 public Piper() {
127 int[] sk = { 0x000000FF };
128 skin = new ImageSkin( 1, 1, sk );
129 }
130
131 public void reset() {
132 count = 0;
133 }
134
135 /***
136 *
137 * Reset to a random point and direction
138 *
139 */
140 public void reset( LiboGrafInterface gl ) {
141 mat.identity();
142
143
144 mat.translate(
145 new Pt3(
146 ( float ) ( Math.random() - Math.random() ),
147 ( float ) ( Math.random() - Math.random() ),
148 ( float ) ( Math.random() - Math.random() )
149 )
150 );
151
152
153 skin.getPixels()[ 0 ] = ( int ) ( 0x00FFFFFF * Math.random() );
154
155
156 count = Stdlib.irand() % 20 + 10;
157
158
159 newAngle( gl );
160 }
161
162 /***
163 *
164 * Turn 90 degrees in a random dimension
165 *
166 */
167 private void newAngle( LiboGrafInterface gl ) {
168
169
170 if ( 0.80f > Math.random() ) {
171
172 float f = ( 44.0f / 7.0f * 0.25f ) * ( Stdlib.rand() % 4 );
173
174 float currx, curry, currz;
175 currx = curry = currz = 0;
176
177 int next = Stdlib.irand() % 3;
178 if ( -1 != last && last != next ) {
179 com.insanityengine.ghia.GeomLoaded.GeomLoadedSphere2.staticDraw( gl );
180 }
181
182 switch( next ) {
183 case 0: currx = f; break;
184 case 1: curry = f; break;
185 case 2: currz = f; break;
186 }
187
188 last = next;
189
190
191 mat.rotate( new Pt3( currx, curry, currz ) );
192
193 if ( 0 == Stdlib.irand() % 2 ) inc *= -1;
194 }
195 }
196
197 /***
198 *
199 * Draw the pipe and move on
200 *
201 * @param gl context to draw in
202 *
203 */
204 public void draw( LiboGrafInterface gl ) {
205
206 inc = ( float ) ( 10 + Math.random() * 30 );
207
208 if ( 0 >= count ) reset( gl );
209
210 gl.multiply( mat );
211
212 gl.getRenderer().setSkin( skin );
213
214 drawPipe( gl );
215
216
217 mat.translate( new Pt3( 0, 0, inc ) );
218
219
220 newAngle( gl );
221
222 count--;
223 }
224
225 /***
226 *
227 * Draw the pipe using the LiboGrafInterface
228 *
229 * @param gl to draw to
230 *
231 */
232 private void drawPipe( LiboGrafInterface gl ) {
233
234 for ( int i = 0, j ; i < circlePts.length ; i++ ) {
235 j = ( circlePts.length == i ) ? ( i + 1 ) : ( 0 );
236
237 gl.startPolygon();
238 ptIt( gl, circlePts[ i ].getX(), circlePts[ i ].getY(), 0 );
239 ptIt( gl, circlePts[ j ].getX(), circlePts[ j ].getY(), 0 );
240 ptIt( gl, circlePts[ j ].getX(), circlePts[ j ].getY(), inc );
241 ptIt( gl, circlePts[ i ].getX(), circlePts[ i ].getY(), inc );
242 gl.stopPolygon();
243 }
244 }
245
246 /***
247 *
248 * Add a point to the LiboGrafInterface
249 *
250 * @param gl to addPoint to
251 * @param x coordinate
252 * @param y coordinate
253 * @param z coordinate
254 *
255 */
256 private void ptIt( LiboGrafInterface gl, double x, double y, double z ) {
257 pt.set( ( float ) x, ( float ) y, ( float ) z );
258 gl.addPoint( pt );
259 }
260
261
262
263 private Pt3 pt = new Pt3();
264
265 private int last = -1;
266 private int count = 0;
267 private float inc = 10.0f;
268
269 private ImageSkin skin = null;
270
271 private Matrix mat = new Matrix();
272 };
273
274 };
275
276 /***
277 *
278 * $Log: Piping.java,v $
279 * Revision 1.6 2005/03/26 23:42:41 brian
280 * fix links
281 *
282 * Revision 1.5 2005/03/19 17:50:02 brian
283 * repackaging
284 *
285 * Revision 1.4 2005/03/11 23:35:31 brian
286 * major refactoring to add in com.insanityengine.ghia.libograf.State bitz
287 *
288 * Revision 1.3 2004/09/27 00:26:19 brian
289 * added image link to dox
290 *
291 * Revision 1.2 2004/09/22 03:17:15 brian
292 * be less lame...
293 *
294 *
295 */
